TS9500DVB-S2

Clique para zoom

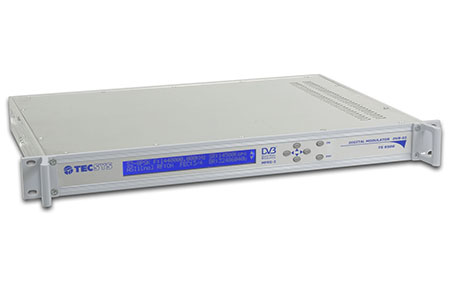

Description: DVB-S/S-2 standard modulator to use in digital signal satellite TV system. Two ASI switchable inputs, 70MHz RF output (FI), front display with detailed information and front keys for programming.
Main features:
Compression format

Format: QPSK /8PSK DVB-S2 according to standard EN 302.307

Variable Symbol Rate up to 31200 Ms/s @ FEC 9/10

FI output frequency: 70MHz ± 20MHz

Output level: 0 to -60dBm @ 5MS/s

Return loss: >10dB

Output spurious: <65dBc 4KHz @ -20dBm

Inner Coding: LDPC

Outer Coding: BCH

FEC: DVB-S: 1/2; 2/3; 3/4; 5/6 and 7/8

DVB-S2 8PSK: 3/5; 2/3; 3/4; 5/6; 8/9; 9/10

DVB-S2 QPSK: 1/2; 3/5; 2/3; 3/4; 4/5; 5/6; 8/9; 9/10

Fixed Roll-off 35% (for S mode) and variable of 20.25 and 35% for S2-QPSK and 8PSK modes

Phase noise: < -50dBc/Hz @ 10Hz

< -70dBc/Hz @ 100Hz

< -80dBc/Hz @ 1KHz

< -85dBc/Hz @ 10KHz

< -90dBc/Hz @ 100KHz

Stability: ± 5ppm
