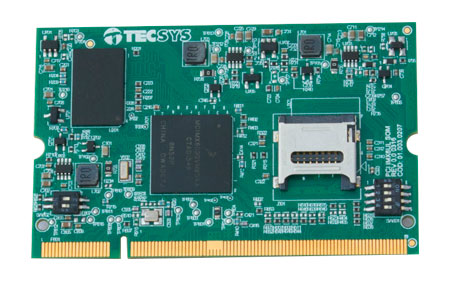

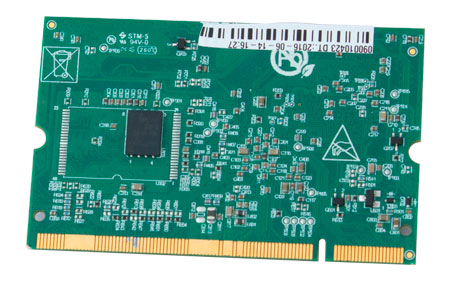

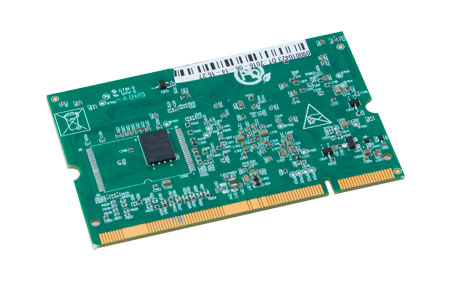

Description: The SOM i.MX6 Tecsys TS1000ARM is an embedded computer in SODIMM 200 format based on the NXP / Freescale i.MX6UL processor. The i.MX 6 UltraLite is a high performance, low power consumption processor with an ARM® Cortex®-A7 processor with operating frequency up to 696 MHz. SOM also has 4GB of DDR3, 256Mb flash memory, Micro SD card input. The SOM provides control for devices such as LCD, HDMI, CAN, JTAG, USB, Bluetooth, Sensors, Ethernet, CODECs and UART.
Operating temperature: 0 to 95°C (commercial use) or -40 to 105°C (industrial use).
AES/TDES/SHA security cryptography with secure boot and tamper monitor
PXP (Pixel Processing Pipeline) with support for 2D processing
2 12-bit ADCs with up to 10 input channels with touch control
Video output with resolution up to WXGA 1366 x 768 with display clock up to 85MHz;
Up to 8GB DDR3-1600
200 pins in SODIMM format for several inputs and outputs: SPI, USB OTG, CAN, I2S serial audio, I2C, UART, Smart Card interface, display port, 2x Ethernet 10/100Mbps and JTAG
